UPVC Piping System

Al-Rajhi UPVC pipes provide numerous advantages in various applications

About UPVC Piping System

Al-Rajhi Plastic Factory Company Limited a leading provider of top-quality UPVC, PVC Sch40, PVC Sch80, CPVC Sch80 and PPR pipes in the Gulf region. Since our establishment in 2004, we have aimed to be the preferred Supplier, Stockist and Manufacturer of pipes with an aim to provide appropriate prices contributing to the construction of a better tomorrow.

We take pride in our extensive experience and expertise in providing high-quality piping solutions for various sectors such as

Water Supplies, Electrical & Telecommunications, Irrigation, Oil & Mining, Construction Purposes

As a trusted Distributor, we work closely with major Bahraini manufacturing pipe factories, including GULFPLAS, TYLOS, PLASTICO, and BAHRAIN PIPES. This partnership allows us to offer a wide range of products manufactured according to technical standards such as ASTM 1785, D-2241, F-521, DIN 8062, 19531, 19532, 19534, NEMA TC-2, TC-6, TC-8, SASO 14, BS 3505, 3506, 5481, 4660, EN 1452, among others

Applications of Al-Rajhi UPVC Pipes

Water supplies

Non-toxic uPVC pipes will not affect the taste, color, or smell of drinking water.They will never corrode and are therefore extremely sanitary. Deposits and scales will not build up inside as in the case for conventional steel pipes. Their strength is greater than asbestos pipes.

Irrigation Systems

AL-RAJHI uPVC pipes are ideal for agricultural irrigation and sprinkler systems.Non-corrosive AL-RAJHI uPVC pipes are perfect for carrying water which contains chemical fertilizers and insects inhibitors. In thick wall and large diameter AL-RAJHI uPVC pipes liquids can be transported under high pressure which is convenient for the management of large farms.

Industry

Resistant to most chemicals, AL-RAJHI uPVC pipes have an important role to play in industrial plants. Light, non-corrosive and easy to assemble they allow more complex piping work that with steel or cast-iron pipes.

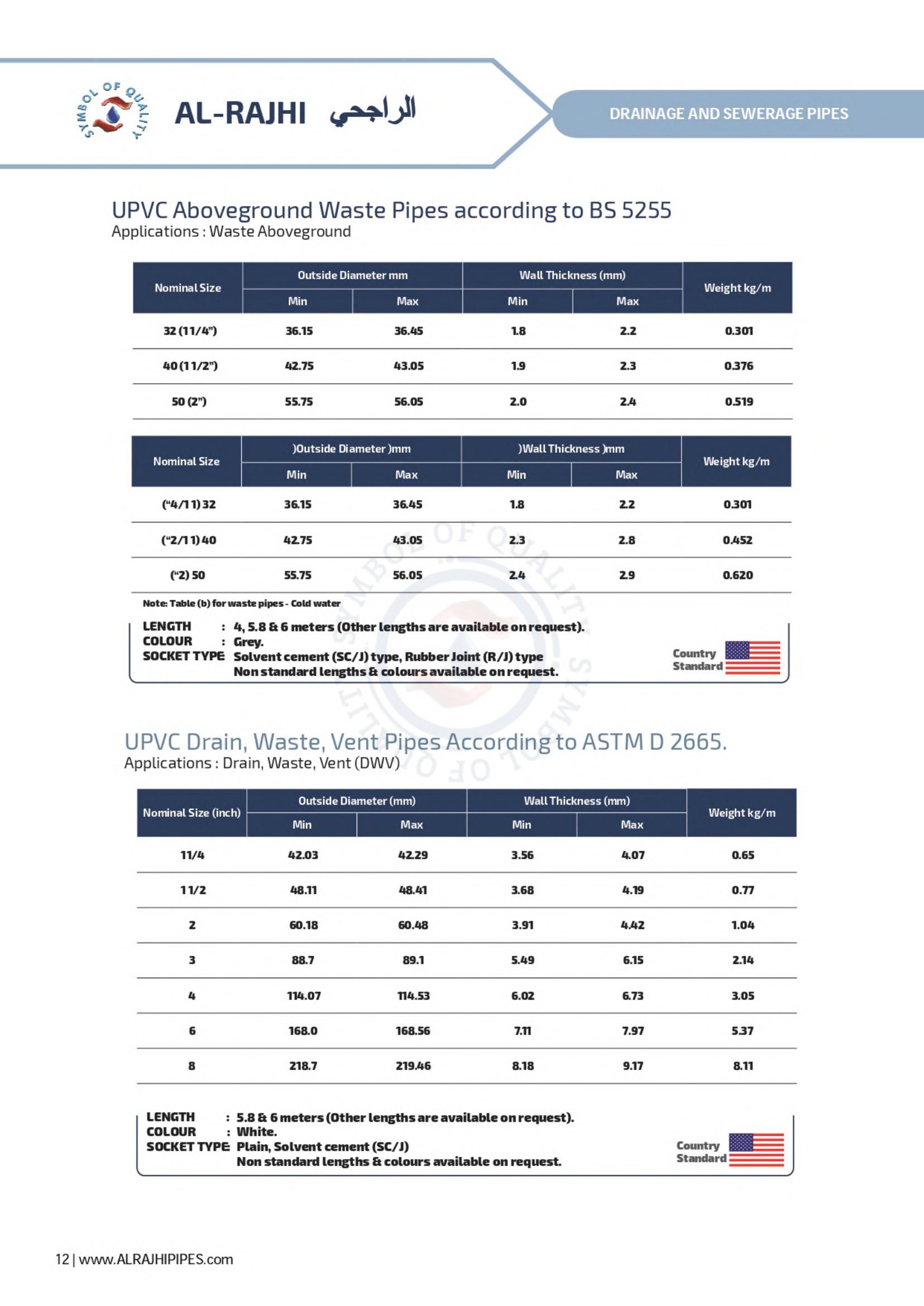

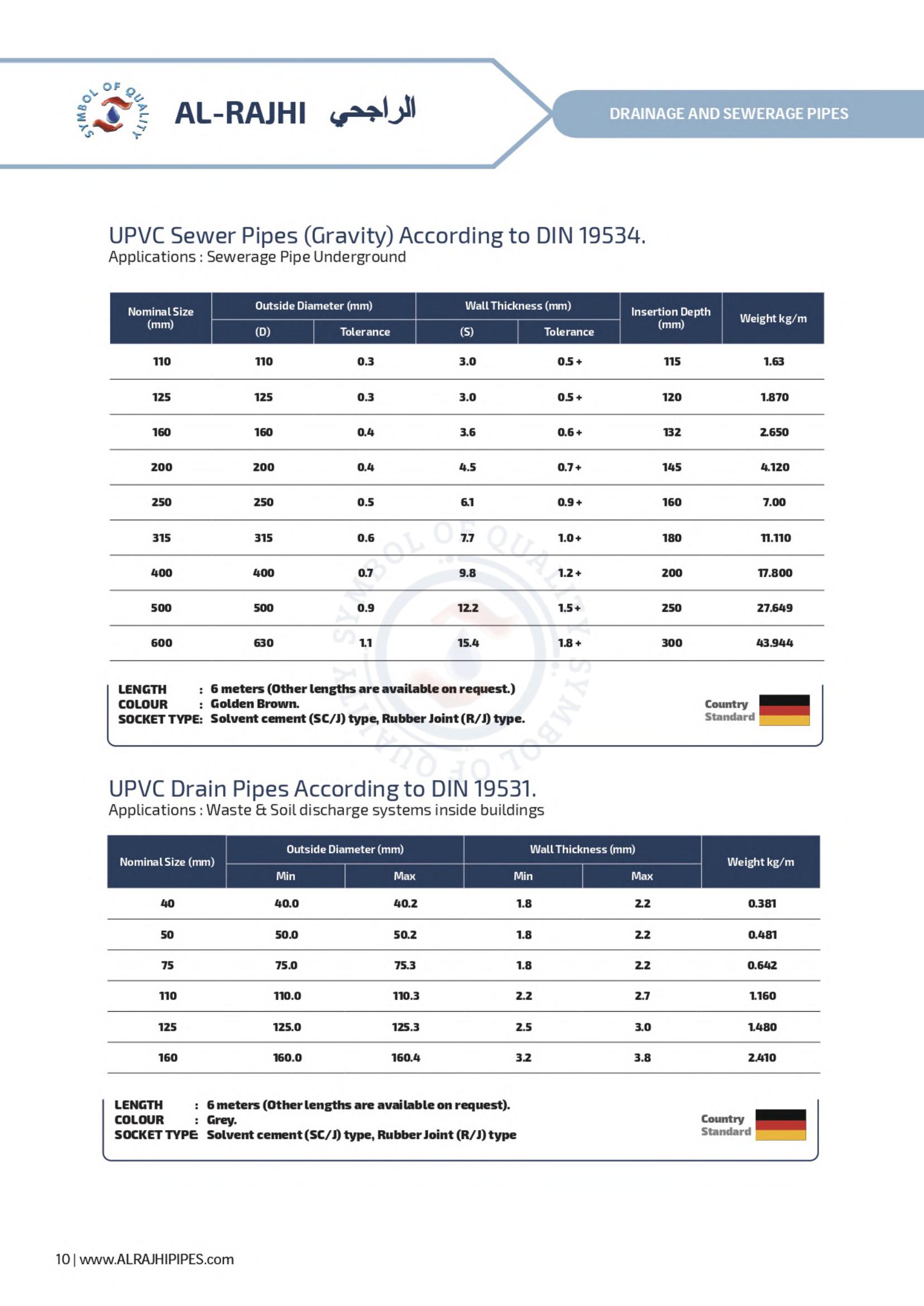

Solid, Waste & Drainage System

Waste line for corrosive gases, ventilation for office buildings and factories; drainage systems for private homes and elevated highways - these are a few of the many possibilities for AL-RAJHI uPVC pipes. A full line of uPVC fittings is available to assure easy installation.

Mining

AL-RAJHI uPVC pipes particularly are well-suited for draining corrosive liquids found in mines. They make an ideal vent line for pits because they are easily installed in hard to reach places.

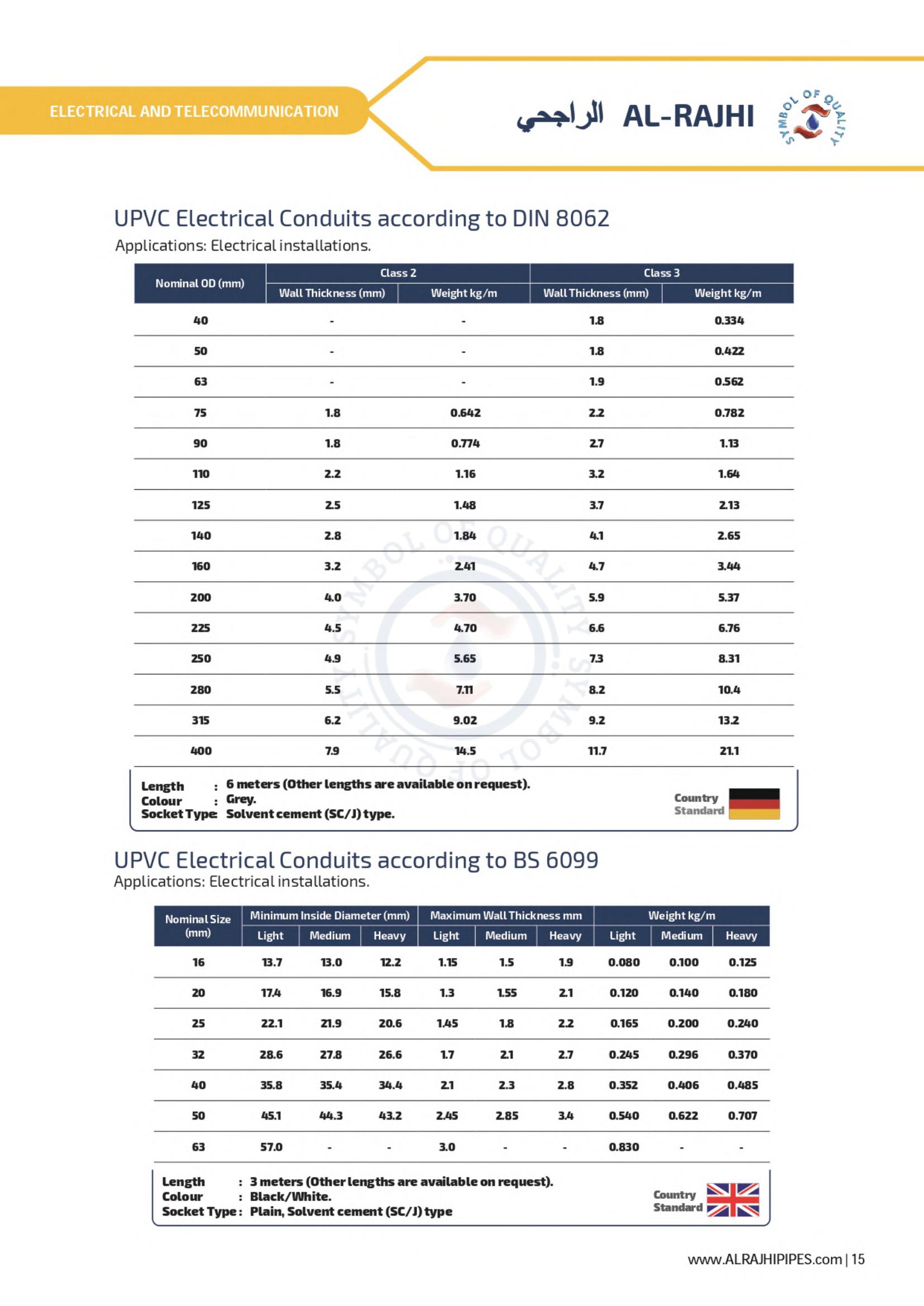

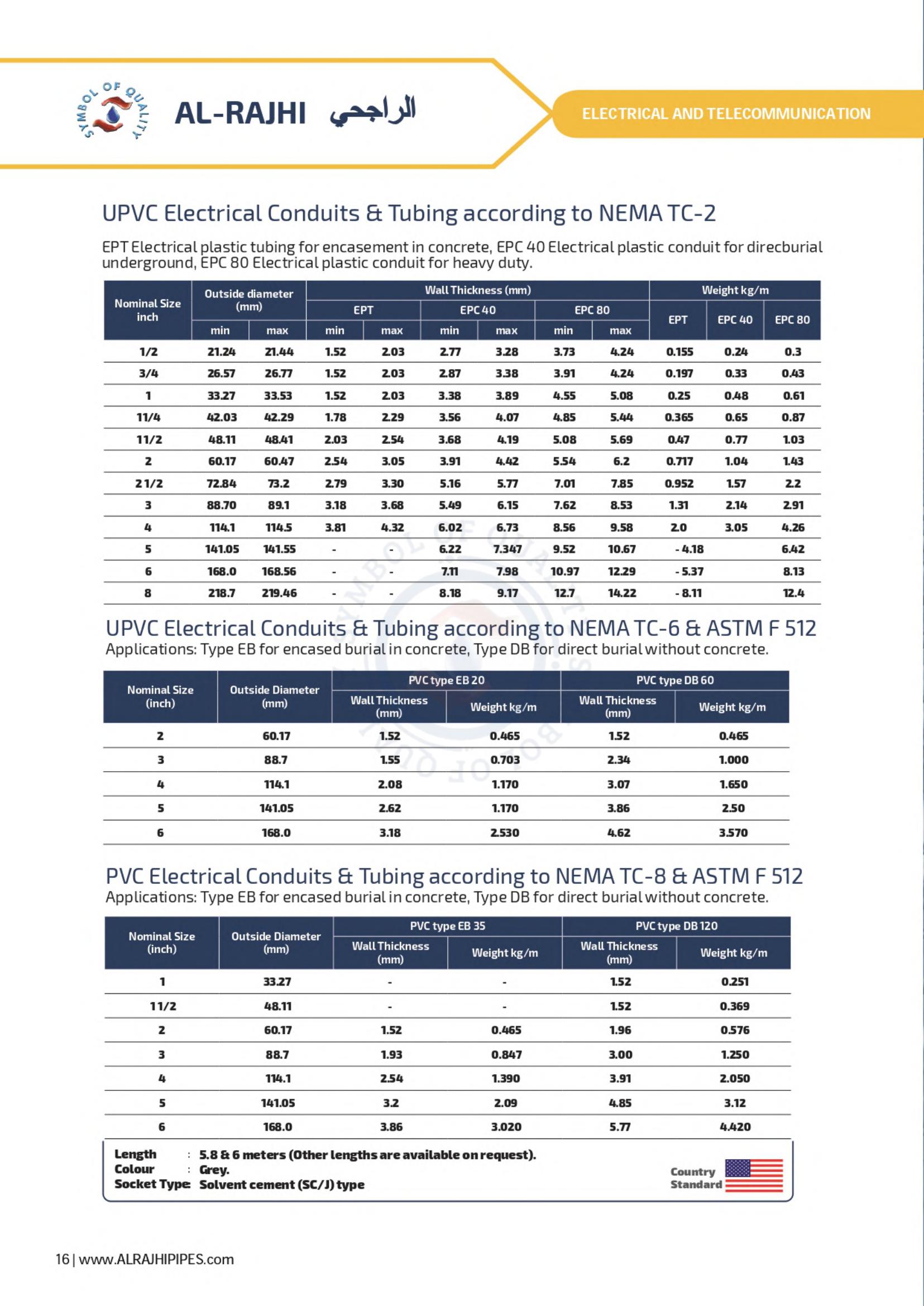

Electrical & Telecommunications Cables

AL-RAJHI uPVC pipes form in an integral insulator, hence there is an ever-increasing demand for them as electrical conduit. To facilitate work, a full line of fittings is available and fabricated from the same material as the pipes.

AL-RAJHI uPVC pipes for Casing and Screen

Engineering difficulties and the probability of adverse chemical reactions make it impractical to overcome corrosion and encrustation through the use of protective coating, chemical treatment or cathodic protection. Thus AL-RAJHI non-corrosion PVC for water well easing and screens rapidly received approval by the appropriate ministry consultants and engineers.

PVC Pipe Comparison Table

Type Size Range (mm) Pressure Rating (PN) Common Applications
uPVC Pipes 16mm - 800mm PN6 - PN16 Cold water supply, irrigation, conduit, sewage
cPVC Pipes 20mm - 315mm PN16 - PN25 Hot and cold water supply, industrial applications
PVC Pressure Pipes 50mm - 630mm PN10 - PN25 Municipal water supply, irrigation, fire-fighting
PVC Drainage Pipes 100mm - 800mm Non-pressure Stormwater, sewage, drainage systems
PVC Electrical Conduit 16mm - 100mm Non-pressure Electrical cable protection, conduit systems
PVC Duct Pipes 50mm - 300mm Non-pressure HVAC, telecommunication, underground ducting

PVC Pipe Sizes in UAE

Pipe sizes are usually measured in nominal diameter (DN) or outer diameter (OD).

Standard Sizes Available

Small sizes (conduits & domestic plumbing):

16mm 20mm 25mm 32mm 40mm 50mm

Medium sizes (water supply, drainage):

63mm 75mm 90mm 110mm 125mm 160mm

Large sizes (sewage & infrastructure):

200mm 250mm 315mm 355mm 400mm 500mm 600mm 800mm

Standard Lengths

6 meters (most common in UAE)

Some suppliers provide 3m & 12m lengths

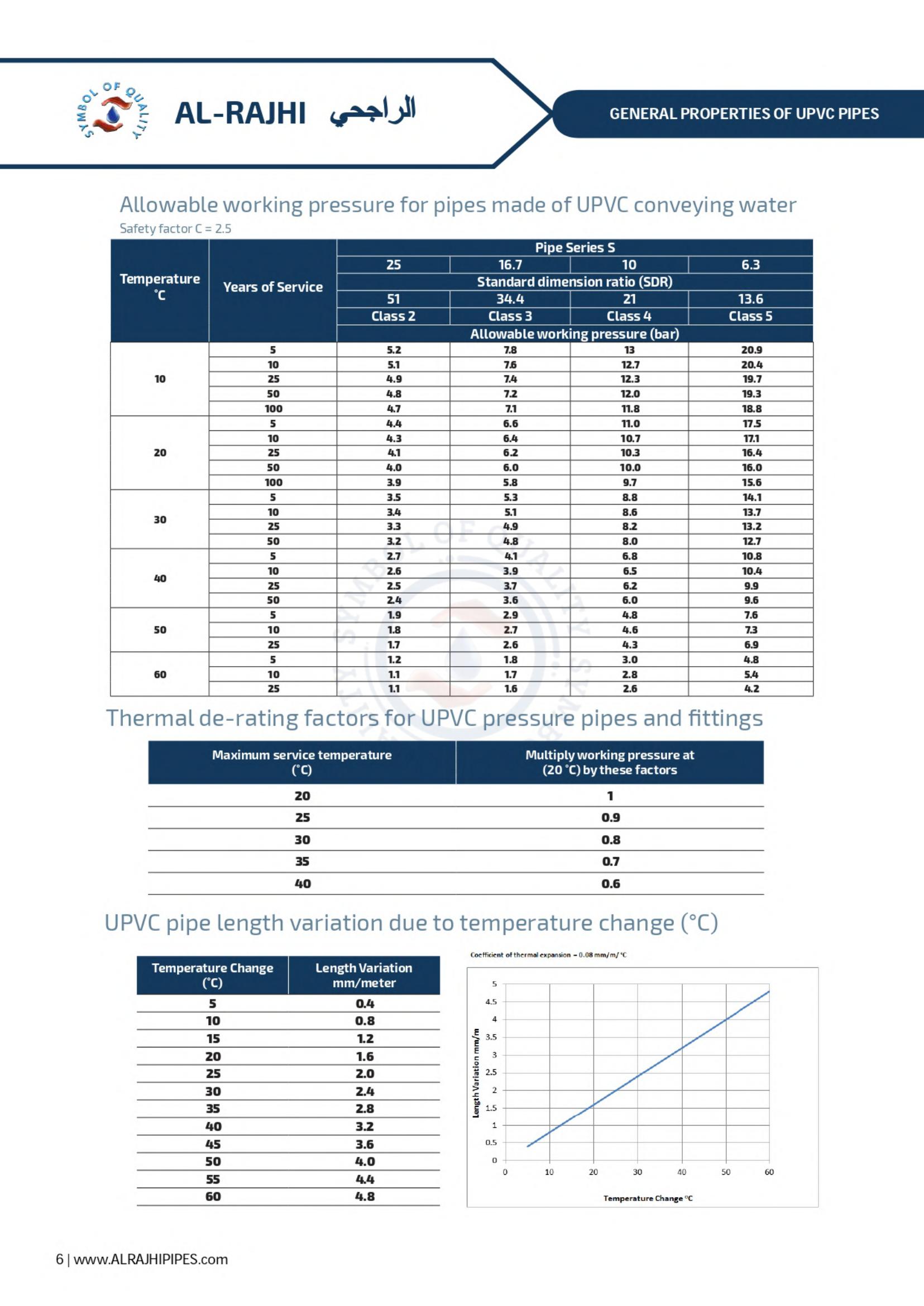

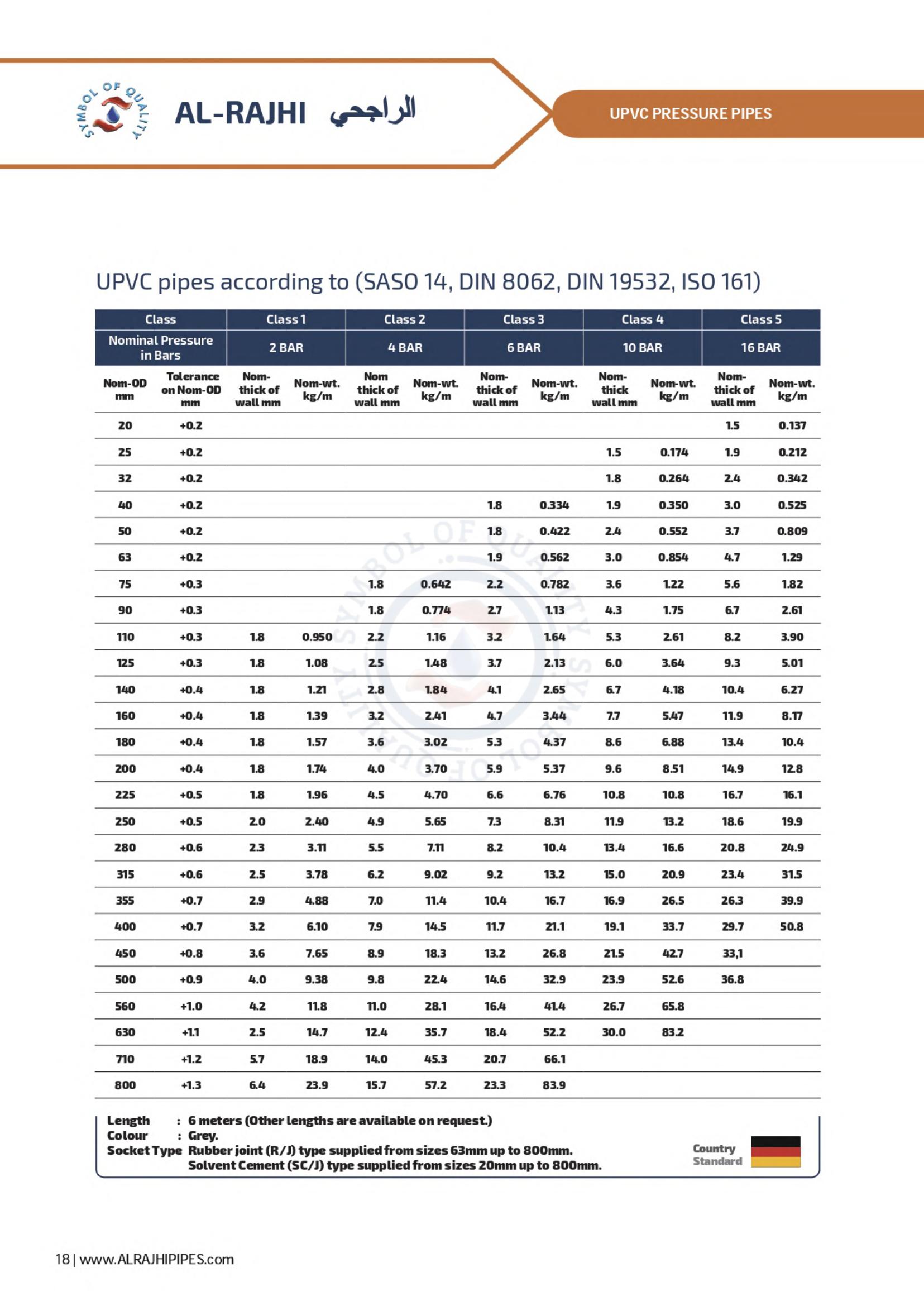

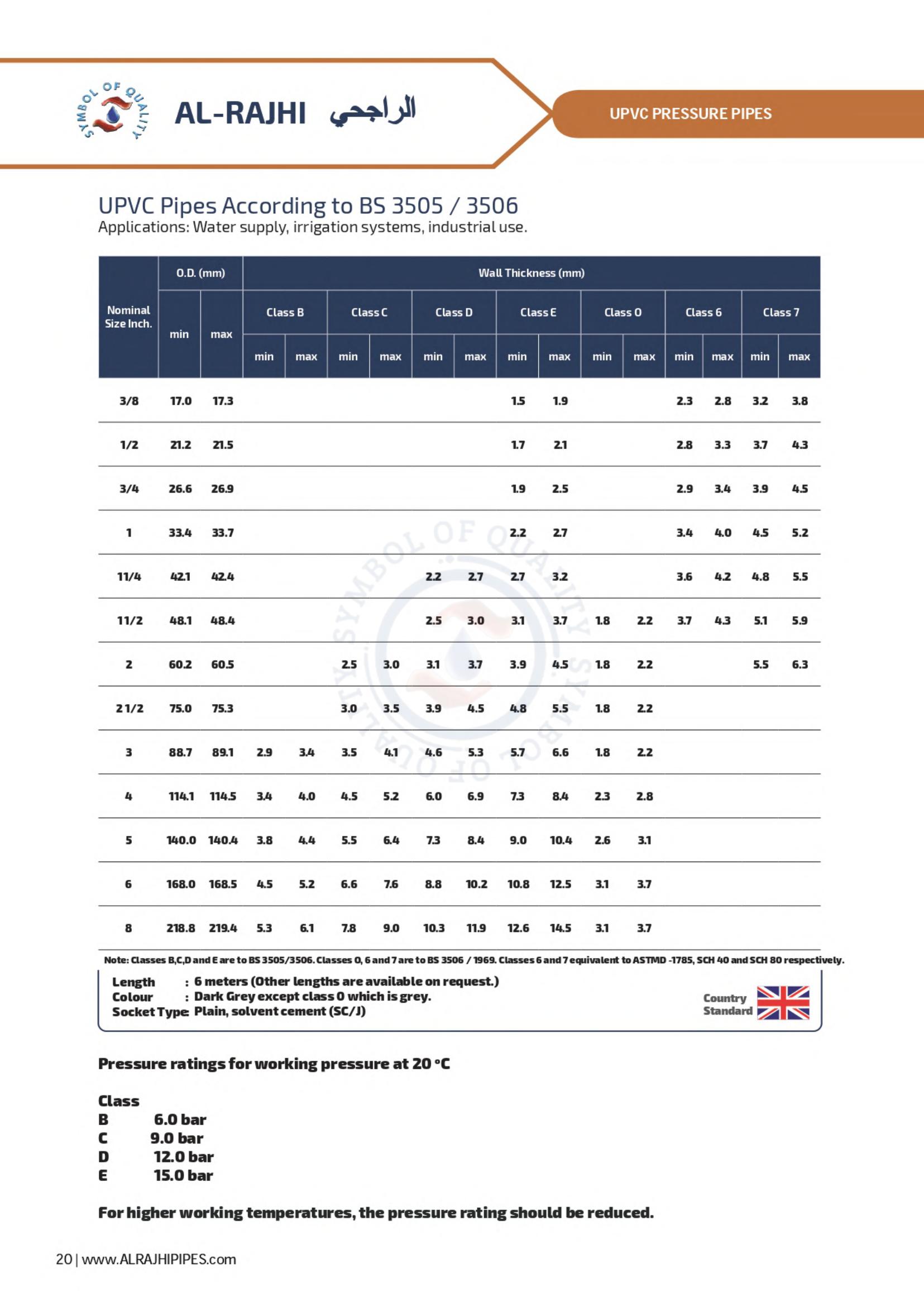

Pressure Ratings (PN)

PN6, PN10, PN12.5, PN16 (indicating pressure capacity in bar)

Applications in UAE Construction

PVC pipes are essential for various construction applications across the UAE:

Building Plumbing

Used for cold and hot water supply systems in residential and commercial buildings.

Sewage & Drainage

Essential for sewage networks, stormwater drainage, and waste disposal systems.

Irrigation Systems

Used in landscaping, agriculture, and golf course irrigation throughout the UAE.

Electrical Conduit

Protects electrical cables with flame retardant and non-conductive properties.

HVAC & Fire-fighting

Used in air conditioning systems and fire protection pipelines.

Telecommunication

Protects underground cables and provides ducting for telecom infrastructure.

Popular PVC Pipe Brands in UAE

In the UAE, popular PVC pipe brands/suppliers include:

National Plastic (UAE), Modern Plastic Industry (MPI Dubai), Raktherm, Future Pipe Industries, RAK Pipes

AL-RAJHI The Most Trusted and Reliable UPVC Pipes Supplier

Al-Rajhi Pipes looks to produce products that care for the future
